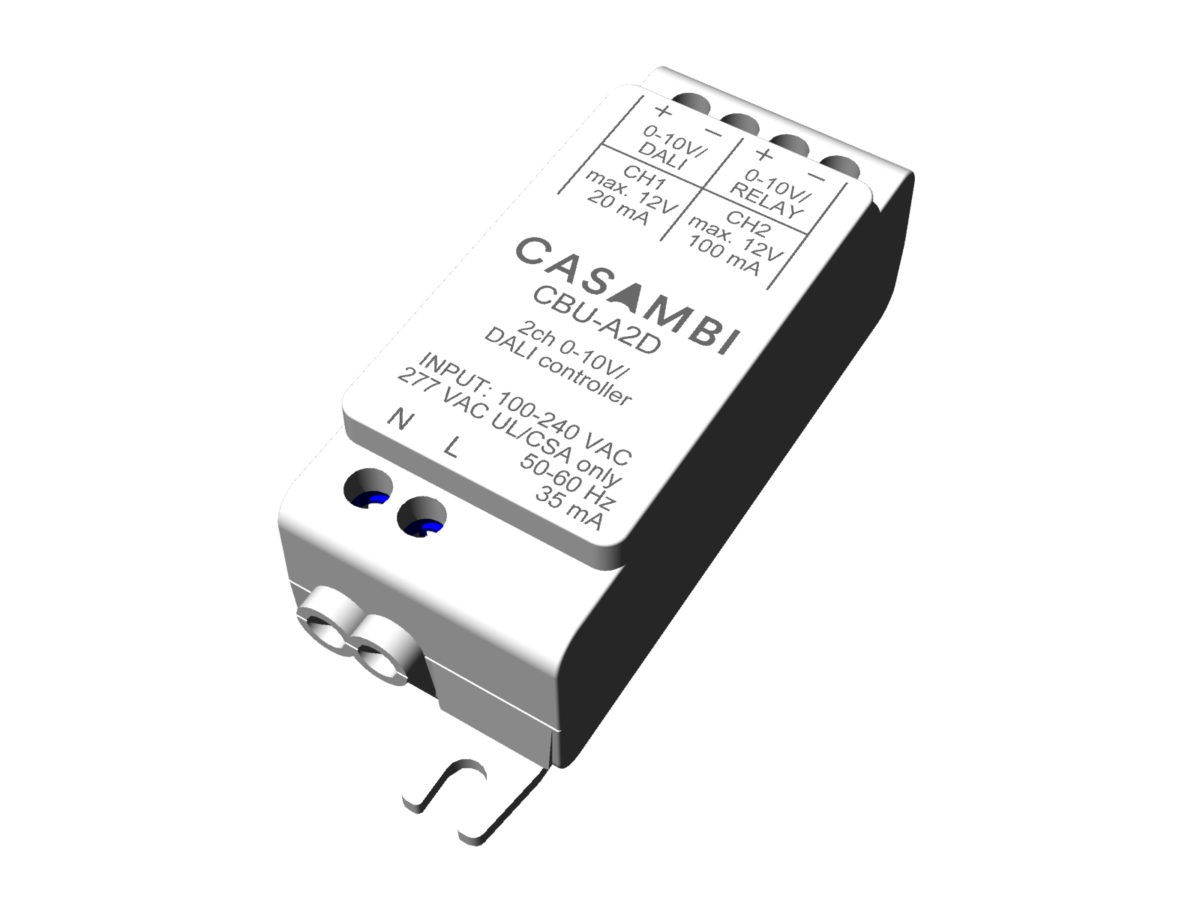

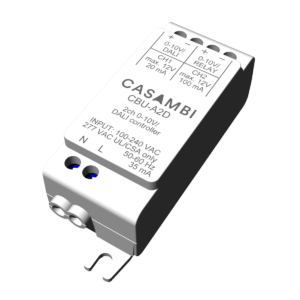

Bluetooth controllable 2 ch 0-10V/DALI controller -CBU-A2D
CBU-A2D can control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two 0-10V control interfaces. The product can also be configured into a DALI mode where it can be connected to a DALI LED driver or a DALI sensor for the presence and/or daylight harvesting functions.
| Art. | 164 19 24 09 50 |
| Description | Bluetooth controllable 2 ch 0-10V/DALI controller -CBU-A2D |
| Input | 100 – 240VAC (50-60Hz) |
| Output voltage | 0-12VDC |
| Bluetooth range indoor | 30 meter |
| Radio frequency | 2,4 – 2,480 MHz |
| Max. output power radio | +4dBm |

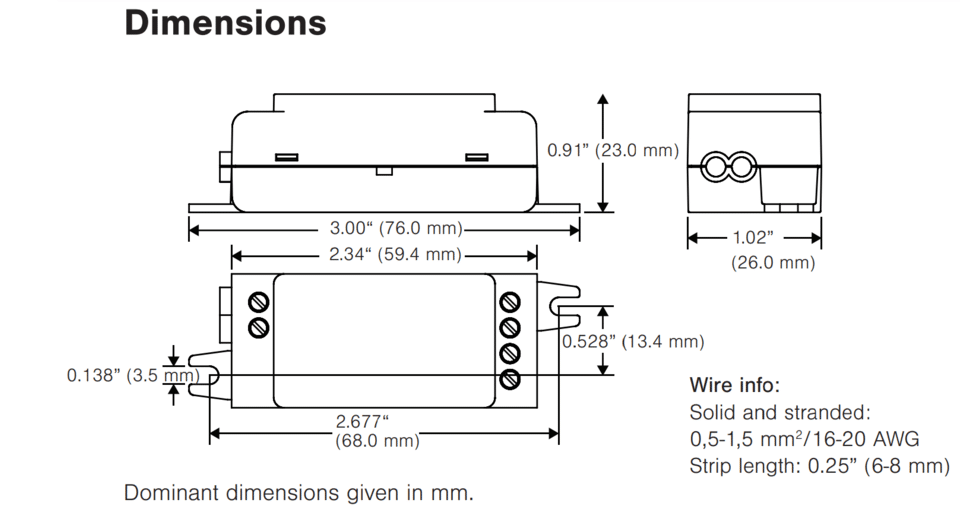

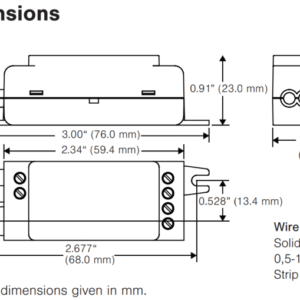

| Dimensions | 76 x 26 x 23 mm |
| Weight | 40 gr |
| IP class | IP20 |
Product codes
| Art. number | Description |
|---|---|
| 164 19 24 09 50 | Bluetooth controllable 2 ch 0-10V/DALI controller -CBU-A2D |
