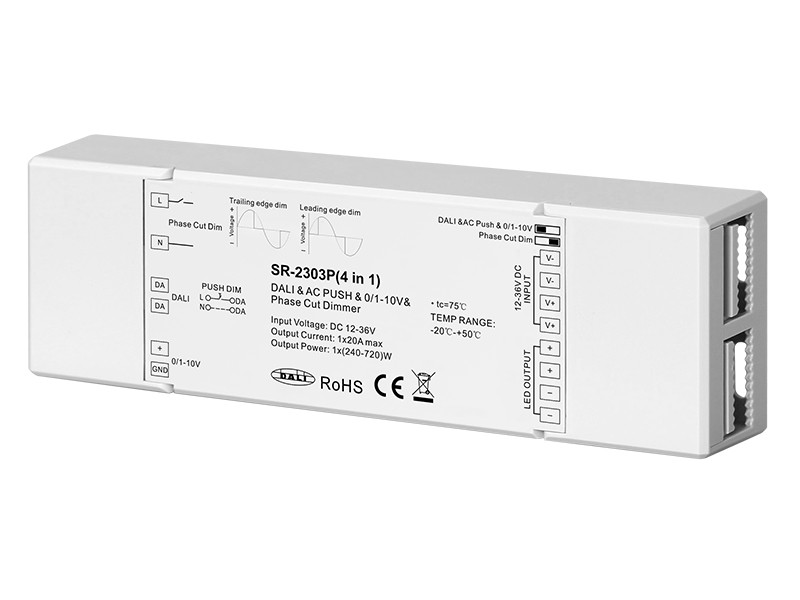

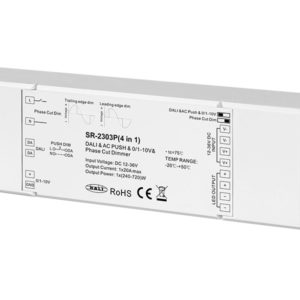

Dali controller 4-in-1
Multifunction 4-in-1 LED dimmer with muliple dimming protocols. Supports both leading and trailing edge. Matches all DALI systems in the market. 1 DALI address assigned by DALI master.
| Art. | 164 19 25 00 01 |
| Description | Dali controller 4-in-1 |
| Power | 12 – 36 VDC |
| Output current | 1 x 20A |
| Output power | 1 x (240 – 720)W |
| Dali consumption | 2 mA |
| Dimming input | Dali-AC Push-0/1-10V-Phase cut |
| Diming range | 0% – 100% |

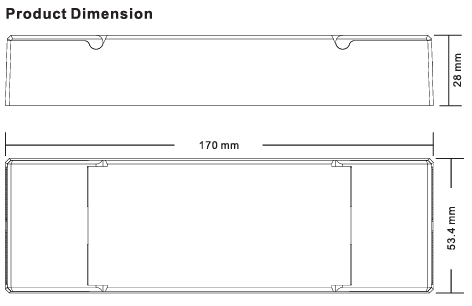

| Dimensions | 170 x 53,4 x 28 mm |
| IP class | IP20 |
Product codes
| Art. number | Description |
|---|---|
| 164 19 25 00 01 | Dali controller 4-in-1 |

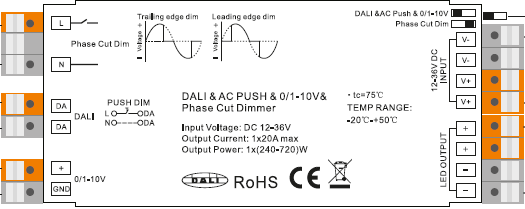

This device can be controlled by:
- DALI
- AC push
- 0/1-10V
- Phase cut dimming
This device can control one of the folowing items:
- 1 x monochrome Ledflex
