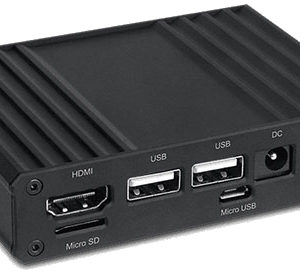

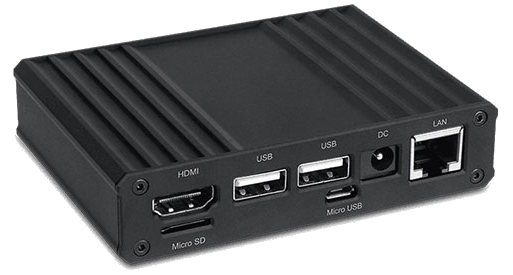

Casambi Gateway
Remote acces to your Casambi network
This device features Qualcomm Snapdragon 410 processor, a Quadcore ARM®
Cortex™ A53 at up to 1.2GHz clock speed per core, capable of 32-bit and 64-bit operation. It supports Android and offers advanced processing power, WLAN, Bluetooth, GPS, and popular RF modules with usb interface. Pre-installed Cassambi APK enables quick setup into your network.
Processor
– Snapdragon 410 quad core ARM® Cortex® A53 (64bit, 1.2GHz)
– Qualcomm® Adreno™ 306 GPU
Memory/Storage
– 2GB LPDDR3 533MHz
– 16 GB eMMC 5.0
– SD 3.0 (UHS-I)
Display
– HDMI 1.3 – HDMI full-size type A connector (1080p HD @ 30 fps)
– Up to 720p 60fps or 1080p 30fps for optional display/touch
Audio(Internal)
– PCM/AAC+/MP3/WMA, ECNS, Audio+ post-processing (optional)
– All signals are routed to the analog expansion connector
Connectivity
– WLAN 802.11 b/g/n 2.4GHz
– Bluetooth 4.1
– 1x 10/100M Ethernet
– 1x USB 2.0 micro B (device mode only)
– 2x USB 2.0 type A (host mode only)
– External BT and WLAN antenna
Expansion connector(Internal)
– 1x 40 pin Low Speed (LS) expansion connecto
UART, SPI, I2S, I2C x2, GPIO x12, DC power
– 1x 60 pin High Speed (HS) expansion connector
– 4L-MIPI DSI, USB, I2C x2, 2L+4LMIPI CSI
– Footprint for one optional 16-pin Analog expansion connector
– Headset, Speaker, FM antenna
External Storage
– 1x Micro SD socket
User Interface
– 2 LED indicators
• 1 for Power On/Off and Ethernet activity
• 1 for WLAN activity
OS-support
– Android 5.1
Power, Mechanical and Environmental
– Power: +6.5V to +18V
– Dimensions:85mm*60mm
– Operating Temp: -10°C to +85°C
– RoHS and Reach compliant
Product codes
| Article number | Description |
| 164 19 24 10 80 | Casambi gateway AndroidOS Wifi/BT/Wired |
