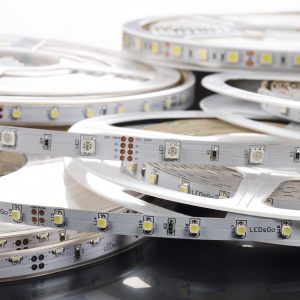

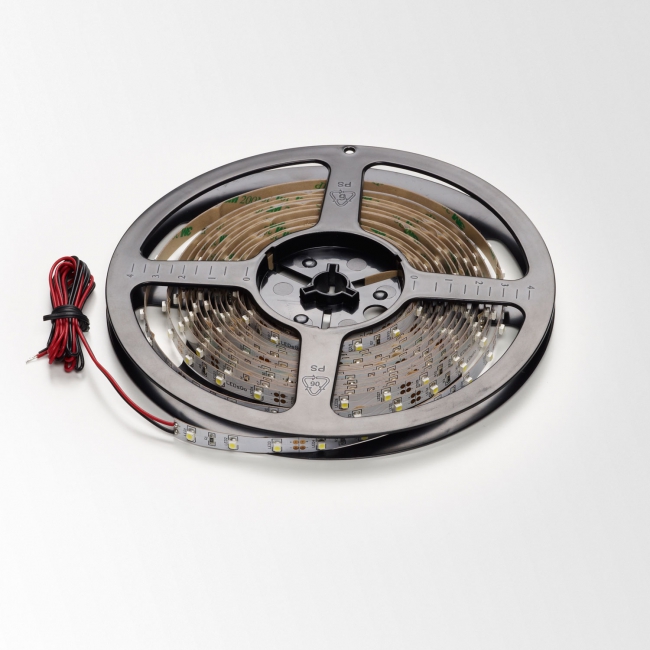

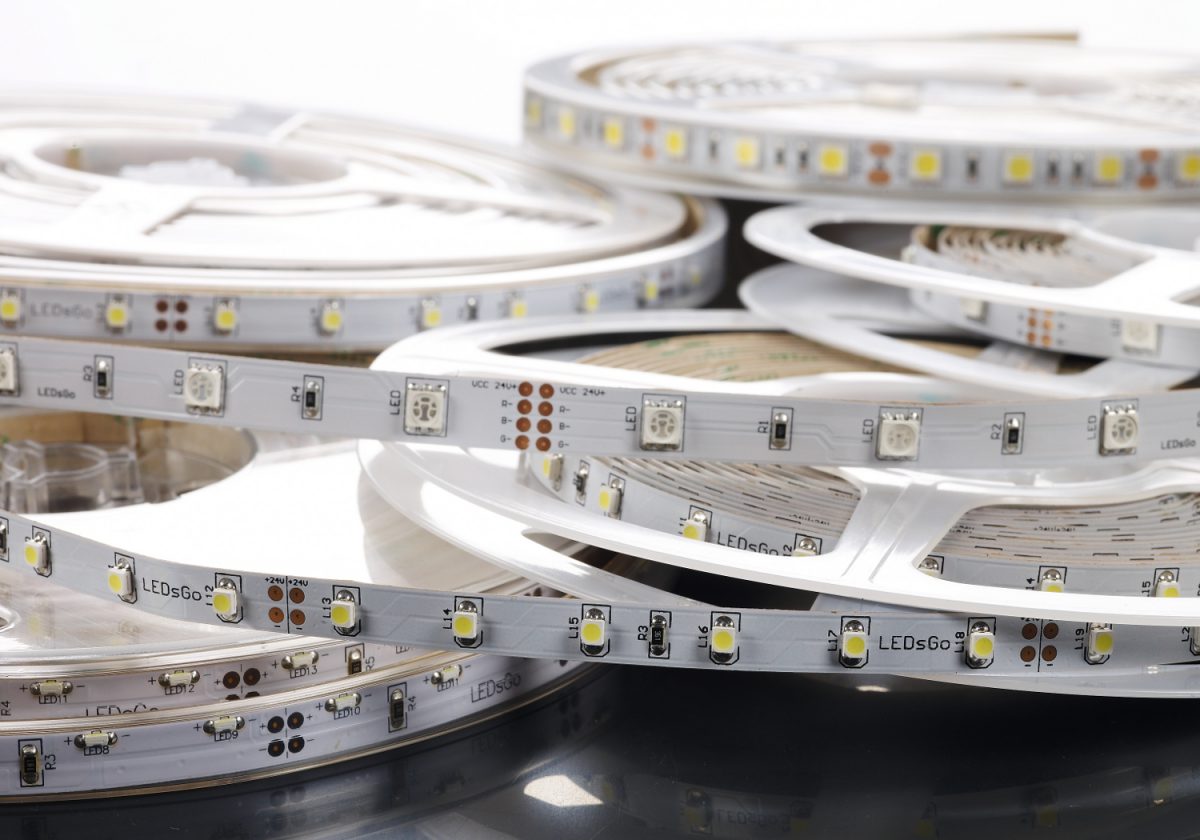

LEDflex indoor
- Double layer PCB and double layer copper for high quality and reliability
- Working voltage: 24VDC
- IP 20
- 5m/reel
- Double sided 3M tape at the back
- Different accessories available
- Can be used in combination with our aluminum LED profiles
- Available in 2700/3000/4000K, tunable white and RGB
- Package includes 20 silicone brackets (for securing the mounting of the strip)
- Endwires 1m long
A LEDflex always works with PWM dimming technology.
Dimming modules with pwm output are available with dali, 0-10V, DMX, Casambi,… interfaces
Product codes
Monochrome white
| Qty leds/m |
System power W/m |
Lightoutput Lumen/m |
Color temp K |
Width mm |

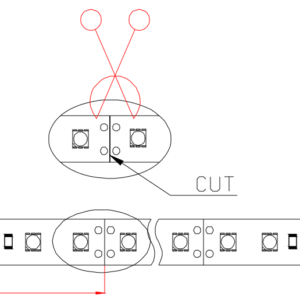

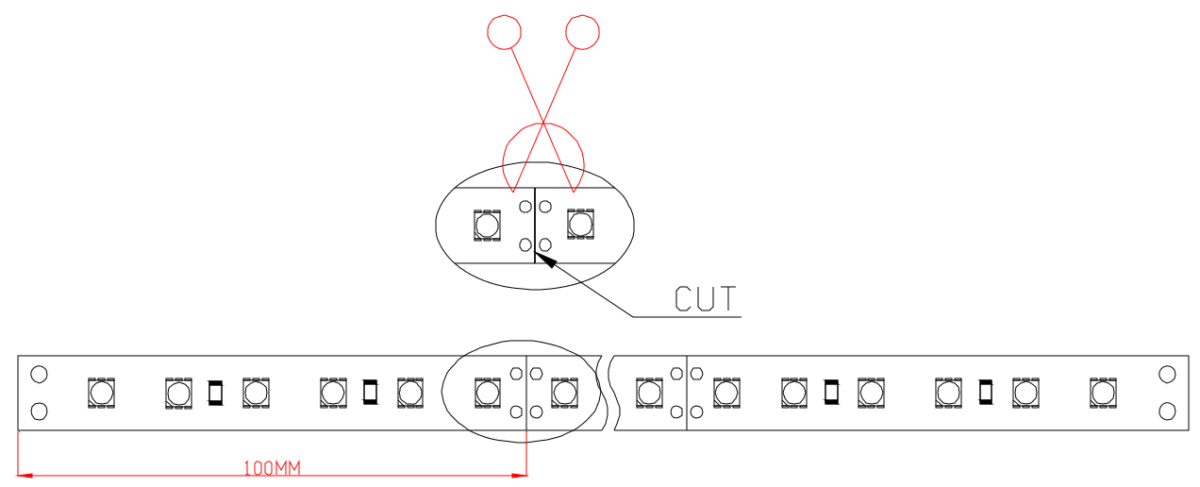

Cuttable each mm |
|
| 13-2040140 | 140 | 5 | 555 | 4000 | 8 | 50 |
| 13-2030140 | 140 | 5 | 545 | 3000 | 8 | 50 |
| 13-2027140 | 140 | 5 | 535 | 2700 | 8 | 50 |
| 13-2040210 | 210 | 10 | 1070 | 4000 | 10 | 33.3 |
| 13-2030210 | 210 | 10 | 1040 | 3000 | 10 | 33.3 |
| 13-2027210 | 210 | 10 | 1010 | 2700 | 10 | 33.3 |
| 13-2040128 | 128 | 15 | 1860 | 4000 | 10 | 62.5 |
| 13-2030128 | 128 | 15 | 1815 | 3000 | 10 | 62.5 |
| 13-2027128 | 128 | 15 | 1740 | 2700 | 10 | 62.5 |
| 13-2040160 | 160 | 20 | 2460 | 4000 | 10 | 50 |
| 13-2030160 | 160 | 20 | 2440 | 3000 | 10 | 50 |
| 13-2027160 | 160 | 20 | 2320 | 2700 | 10 | 50 |

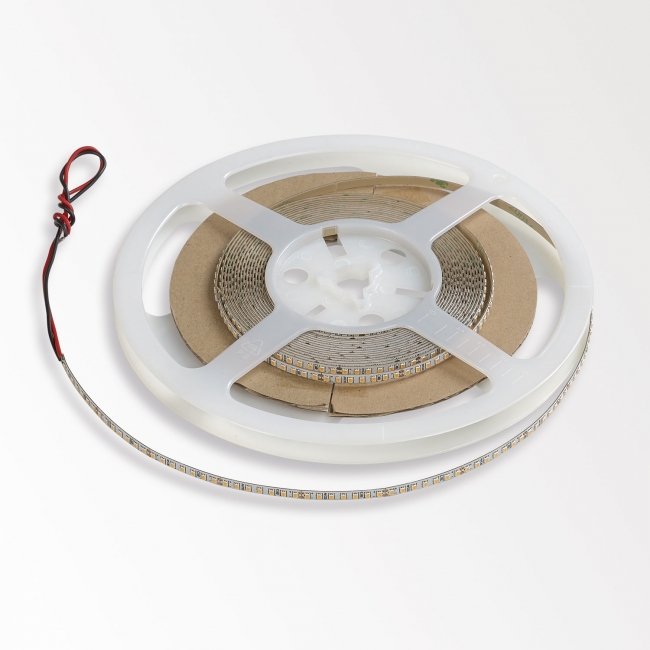

Tunable white
| Qty leds/m |
System power W/m |
Lightoutput Lumen/m |
Color temp K |
Width mm |
Cuttable each mm |
|
| 13-201830 22 40 +B | 224 | 18 | 1460 | 1800 – 3000 Soft DIM |
10 | 62.5 |
| 13-202765224 TW | 224 | 19.92 | 1116-2160 | 2700 – 6000 | 10 | 71.43 |

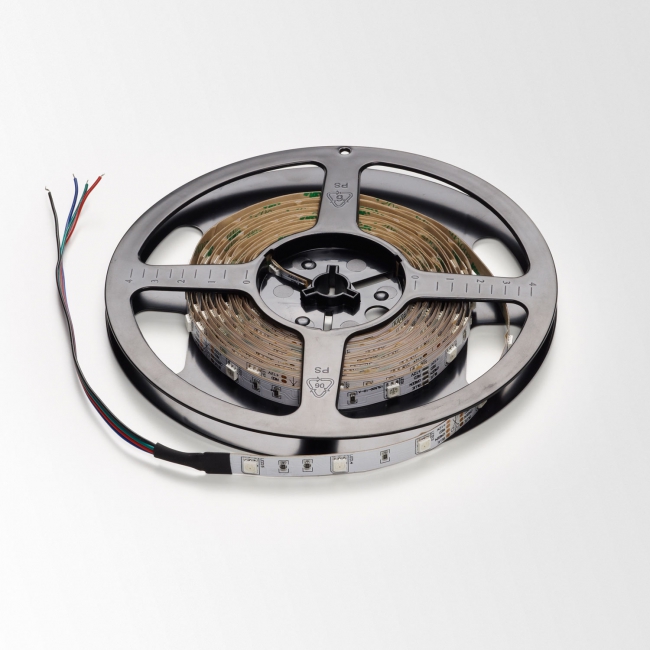

RGB
| Qty leds/m |
System power W/m |
Lightoutput Lumen/m |
Color temp K |
Width mm |
Cuttable each mm |
|
| 13-2000120RGB | 120 | 11 | 65-430 | RGB | 8 | 50 |
| 13-20002765 RGBTW | 288 | 17.5 | 31 – 820 | RGB | 12 | 62.5 |

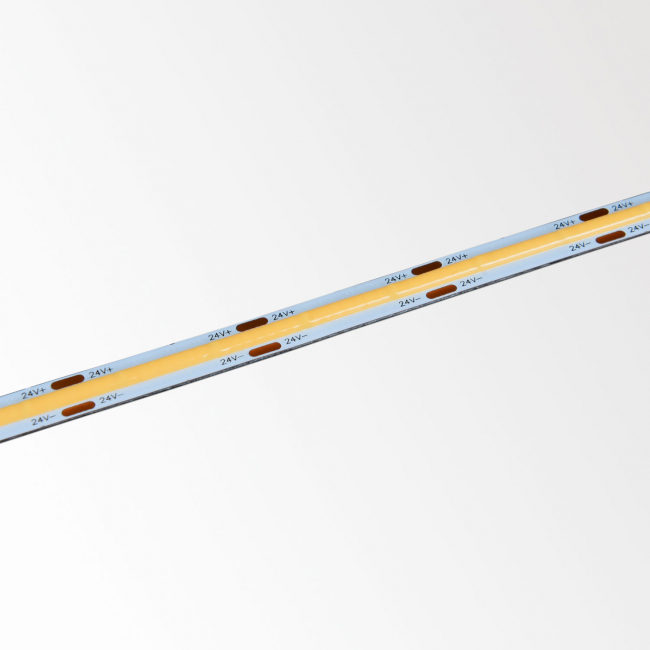

Continuous
| Qty leds/m |
System power W/m |
Lightoutput Lumen/m |
Color temp K |
Width mm |
Cuttable each mm |
|
| 13-2040 COB | Continuous | 8 | 660 | 4000 | 8 | 25 |
| 13-2030 COB | Continuous | 8 | 640 | 3000 | 8 | 25 |
| 13-2027 COB | Continuous | 8 | 630 | 2700 | 8 | 25 |
