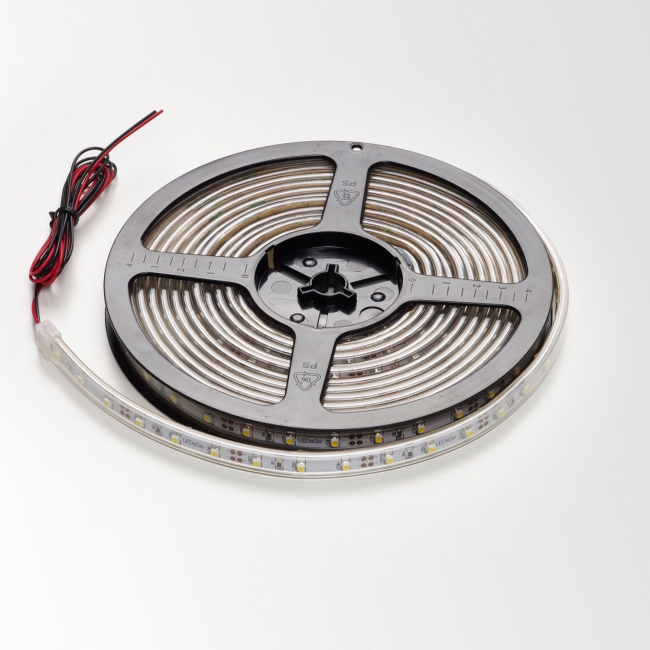

LEDflex outdoor
- Double layer PCB and double layer copper for high quality and reliability
- Working voltage: 24VDC
- IP 65
- 5m/reel
- Double sided 3M tape at the back
- Different accessories available
- Can be used in combination with our aluminum LED profiles
- Available in 2700/3000/4000K and RGB
- Package includes 10 silicone brackets (for securing the mounting of the strip), 3 endcaps closed, 3 endcaps with holes and 1 tube of glue
- Endwires 1m long

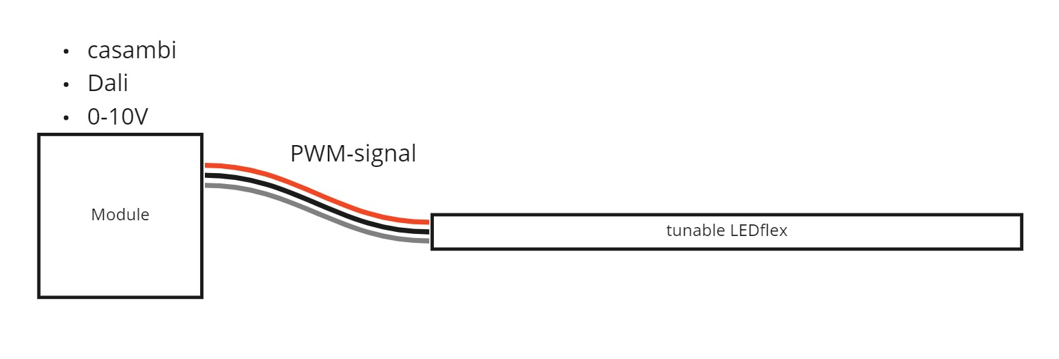

A LEDflex always works with PWM dimming technology.
Dimming modules with pwm output are available with dali, 0-10V, DMX, Casambi,… interfaces
Product codes
Monochrome white
| Qty leds/m |
System power W/m |
Lightoutput Lumen/m |
Color temp K |
Width mm |
Cuttable each mm |
|
| 13-6540140 | 140 | 5 | 550 | 4000 | 11 | 50 |
| 13-6530140 | 140 | 5 | 520 | 3000 | 11 | 50 |
| 13-6527140 | 140 | 5 | 515 | 2700 | 11 | 50 |
| 13-6540210 | 210 | 10 | 1050 | 4000 | 13 | 33.3 |
| 13-6530210 | 210 | 10 | 1010 | 3000 | 13 | 33.3 |
| 13-6527210 | 210 | 10 | 1000 | 2700 | 13 | 33.3 |
| 13-6540128 | 128 | 15 | 1830 | 4000 | 13 | 62.5 |
| 13-6530128 | 128 | 15 | 1740 | 3000 | 13 | 62.5 |
| 13-6527128 | 128 | 15 | 1695 | 2700 | 13 | 62.5 |

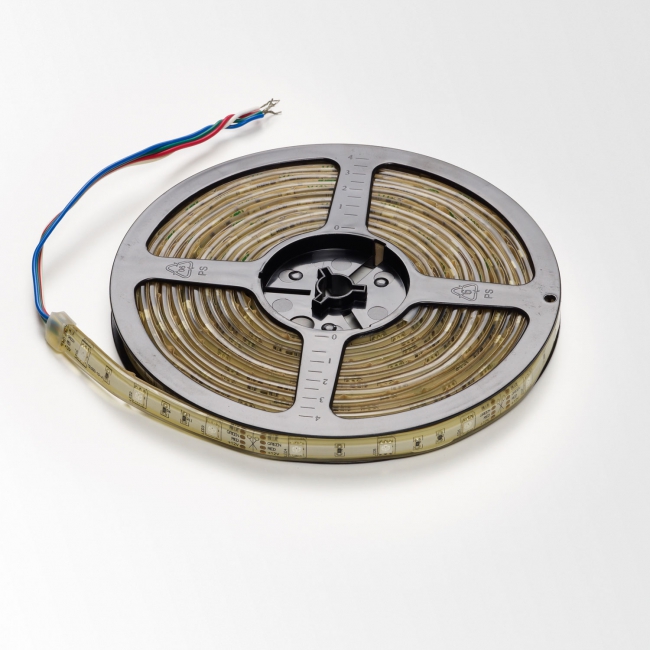

RGB
| Qty leds/m |
System power W/m |
Lightoutput Lumen/m |
Color temp K |
Width mm |
Cuttable each mm |
|
| 13-6500120RGB | 120 | 11 | 65-430 | RGB | 10 | 50 |

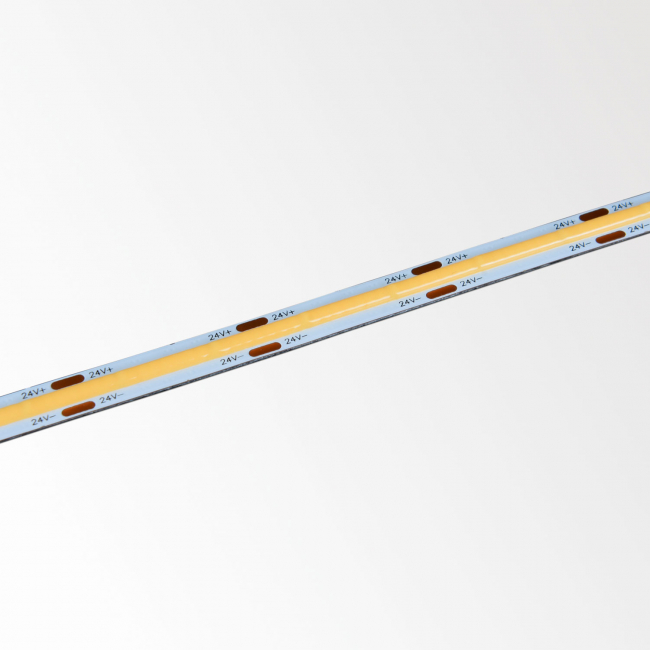

Continuous
| Qty leds/m |
System power W/m |
Lightoutput Lumen/m |
Color temp K |
Width mm |
Cuttable each mm |
|
| 13-6540 COB | Continuous | 8 | 660 | 4000 | 10 | 25 |
| 13-6530 COB | Continuous | 8 | 640 | 3000 | 10 | 25 |
| 13-6527 COB | Continuous | 8 | 630 | 2700 | 10 | 25 |
Neonflex side-bending
| CRI | System power W/m |
Lightoutput Lumen/m |
Color temp K |
Width x Height mm |
Cuttable each mm |
|
| 150 21 02 00 01 | 90 | 8 | 220 | 4000 | 4 x 10 | / |
| 150 21 02 00 02 | 80 | 9,6 | 320 | 3700 | 6 x 12 | / |
